| Product Description: |

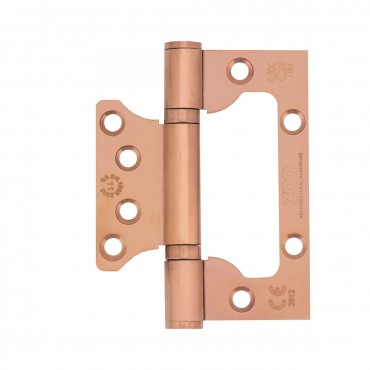

Zoo Hardware Grade 11 Flush Hinges ZHSSFH-243S-PVDBZ PVD Bronze Pair.
Product Reference: ZHSSFH-243S-PVDBZ
The new ZHSSFH-243 series uses a concept commonly used with cupboard or cabinet doors, otherwise known as an interleaf hinge, to offer a unique flush design for full size internal residential door sets. The design removes the need for morticing into a door leaf or frame with a more traditional butt hinge, whilst also eliminating the need for intumescent material, if the hinge is being fitted to a fire rated door.
Successfully tested in accordance with the requirements of BS EN 1935:2002 grade 11, the ZHSSFH-243 series is CE and UKCA marked, and is suitable for use on internal residential non-fire-rated or 30-minute fire rated timber fire doors, weighing up to 80kg.
KEY FEATURES
- Dimensions: 100 x 79 x 3mm
- Stainless Steel
- Requires no morticing into door or frame
- No intumescent needed for use on fire rated doors
- Successfully tested in accordance with the requirements of BS EN1935:2002, Grade 11
- Successfully fire tested in accordance with the requirements of BS EN 1634-1, suitable for use on 30-minute timber fire doors
- UKCA & CE Marked
- ZHSSFH Data Sheet
|
