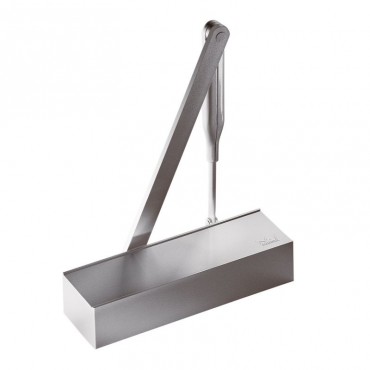

Dorma TS71 Door Closer Size 3 - 4 with Silver Finish Square Cover from Cookson Hardware.
Product Reference: TS71-SILVER
The Dorma TS71 door closer provides an inexpensive solution for standard doors with quality assured. The ease and speed with which it can be fixed, the fact that its spring strength can be so easily adapted to the door size - by simply turning round the hinge plate - and its competitive price should make it the ideal choice for your application. The Dorma TS71 door closer is Certifre approved (Certificate No. CF 268) for door types ITT 120 and MM/IMM 240.
Finish:
Silver
TS71 Door Closer Features:
-
Inexpensive solution for standard doors
-
Door width up to 1100 mm
-
For single and double-leaf doors
-
Easy and quick installation
-
Compact construction with classic design
TS71 Door Closer Benefits:
For the installer / fabricator:
-
Non-handed design
-
Easy and quick to fix
For the architect / specifier:
For the user:
-
Constant closing action virtually unaffected by temperature fluctuations
-
Optimum closing speed adjustment with two regulating valves
-
Reliable closing with adjustable latching action

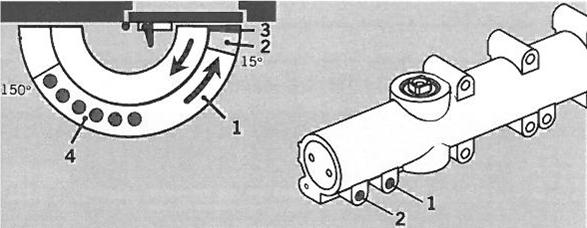

Standard & Optional Functions:
- Closing speed adjustable in the range 180o - 15o..
- Closing speed adjustable in the range 15o - 0o.
- Latching action.
- Hold-open range for model with hold-open arm (optional extra).
Closing Force Settings:
|
Door Width
|
Setting |
| up to 950mm |
EN 3 |
| up to 1100mm* |
EN 4 |

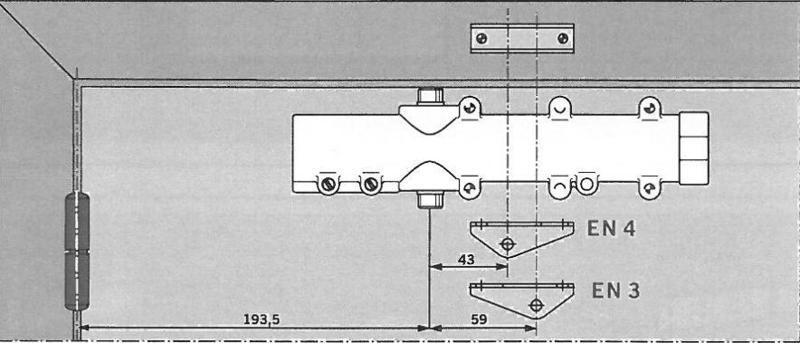

With the TS71 Dorma door closer, the spring strength (size setting) of the closer is adjusted to the door width concerned by merely turning round the hinge plate.
* With parallel arm fixing, the maximum closing force is approx. 20 Nm (for doors up to 950mm)
Dorma TS71 Door Closer Dimensions:
Certification:
The Dorma TS71 door closer is Certifre approved ( Certificate No. CF 268) for door types ITT 120 and MM/IMM 240.
The Dorma TS71 door closer Declaration of Performance can be viewed here - DOP
The Dorma TS71 door closer is CE marked - the certificate can be viewed here - CE
|
