| Product Description: |
Trend Cabinet Door Hinge Template for 35mm & 26mm Hinges.
Product Reference: TEMP/CDH/A

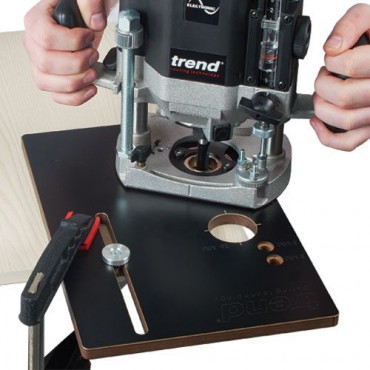

A routing template that allows a router to create a 26mm or 35mm diameter blind hole recess for a circular cabinet door hinge.
Cuts accurate recess for either 26mm or 35mm circular hinges.
- Adjustable alloy edge guide for adjustment of recess position from top or bottom of door.
- Removable alloy edge guide for middle hinge recess.
- 3mm and 5mm location holes to accurateky position the recesses relatuve to the edge of the door.
- Engraved centre sight lines.
- Pin holes reversible for left hnd and right hand doors.
- Made from hard wearing 12mm thick high pressure laminate.
- Requires 12mm diameter cutter, 30mm guide bush and two 100mm throat F-clamps
Dimensions:
Size=355 mm x 320 mm x 12 mm
Hinge dia.=26 mm and 35 mm
Hole position range from top/bottom of door to centre of hinge
26 mm dia.=50 to 105mm*
35 mm dia.=50 to 190 mm*
* Hinge centre normally positioned 100 mm from top/bottom of door.
|
