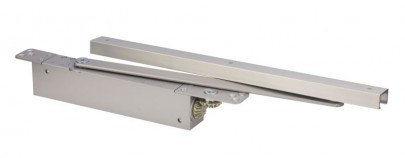

Synergy S1036 Concealed Cam Action Door Closer Size 3 - 6 Polished Brass

Synergy S1036 Concealed Cam Action Door Closer Size 3 - 6 with Polished Brass Track and Matching Arm.

Product Reference: S1036.PBM.MEC

Synergy heavy duty concealed cam action door closer, power size 3 - 6 complete with matching finish track and arm.

• Power Adjustable size 3-6 by spring.
• Intumescent pack optional
• Hold open device optional (Not for use on fire door)
• Suitable for doors up to 1400 mm wide and 120 kg weight.
• Fully tested to the requirements of BS EN 1154.
• Independent door speed and door latching valves.
• Certificated for use on latched and unlatched fire doors.
• For use on single and double leaf doors.
• For use on 44mm - 54mm doors
• Cushion stop optional
• High corrosion protection
• Fire tested to BS EN 1634 part 1. Assessed on FD60 timber fire doors.
• CE marked certificate 2812-CPR-AD5380
• Certifire approved product certificate CF5293
• CPR declaration of performance certificate: DOP-SHL-DC63.
• The S1036 can satisfy the open force recommendations for BS8300 and ADM to a minimum door width of 850 mm in power size EN3 according to third party data. However other installed hardware, door seals and differential air pressure will affect the products as installed performance meaning that the door closer alone cannot allow compliance to BS8300 and ADM.
• Available in Silver, Satin Stainless, Polished Stainless, Polished Brass, Satin Brass, Antique Brass, Polished Copper, Satin Copper, Black, RAL Colours, Wide range of Bronze Finishes.

Technical Information to Download:
S1036 BS EN1154 Classification Coding
S1036 Line Drawing
S1036 Fixing Instructions
S1036 Catalogue Page
