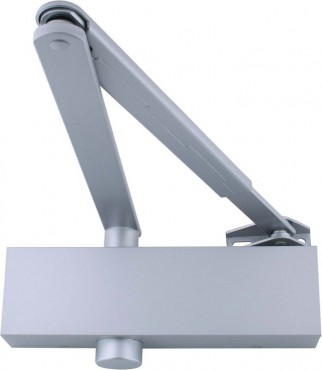

Synergy Door Closer S900 Size 2 - 6 with Backcheck Silver Trimplate

Synergy Door Closer S900 Size 2 - 6 with Adjustable Backcheck in Silver Trimplate Finish.

Product Reference: S900.SES.MEC

Synergy heavy duty door closer, power adjustable by spring complete with PA bracket included and adjustable backcheck. Suitable for doors 1400 mm wide and 120kg maximum weight. Certifire approved.

• Power Adjustable size 2-6 by spring.
• Architectural Radius edge cover.
• Suitable for doors up to 1400 mm wide and 120 kg weight when fitted in fig 1 pull and 1250 mm wide and 100 kg in fig 6 application.
• Parallel arm bracket included
• Fully tested to the requirements of BS EN 1154.
• Independent door speed and door latching valves.
• Certificated for use on latched and unlatched fire doors.
• Fully adjustable backcheck in both application 1 and 6.
• For use on single and double leaf doors.
• Easy installation
• High corrosion protection
• Fire tested to BS EN 1634 part 1. Assessed for use on 30, 60, and 120 minutes on timber fire doors.
• CE marked certificate 2812-CPR-AD5196
• Certifire approved product certificate CF5294
• CPR declaration of performance certificate: DOP-SHL-DC60.
• The S900 can satisfy the open force recommendations for BS8300 and ADM when installed in fig 1 to a minimum door width of 1050 mm in power size EN3 according to third party data. However other installed hardware, door seals and differential air pressure will affect the products as installed performance meaning that the door closer alone cannot allow compliance to BS8300 and ADM.
• Available in Silver, Satin Stainless, Polished Stainless, Polished Brass, Satin Brass, Antique Brass, Polished Copper Satin Copper, Black, RAL Colours, Wide range of Bronze Finishers.

Technical Information to download:
S900 Maintenance Instructions
BS EN1154 Classification Coding Diagram
S900 Line Drawing
S900 Fixing Instructions
S900 Fixing Template in Figure 1
S900 Synergy Catalogue Page
