| Product Description: |

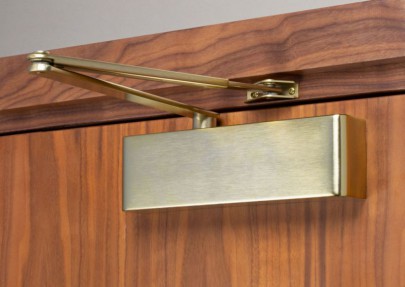

Synergy Door Closer S300 Size 2 - 4 with Semi Radius Cover Satin Brass Finish.
Product Reference: S300.SB.SR
Synergy door closer, power adjustable by power shoe bracket, to suit doors 1100 mm wide 80kg maximum weight. Certifire approved. Parallel arm bracket is not supplied with this door closer but can be purchased separately if required.
- Power Adjustable size 2-4 by power shoe.
- Architectural Radius edge cover.
- Suitable for doors up to 1100 mm wide and 80 kg weight when fitted in fig 1 pull and fig 6 applications.
- Fully tested to the requirements of BS EN 1154.
- Independent door speed and door latching valves.
- Certificated for use on latched and unlatched fire doors.
- For use on single and double leaf doors.
- Easy installation
- High corrosion protection
- Fire tested to BS EN 1634 part 1. Assessed for use on 30, 60, and 120 minutes on timber fire doors.
- CE marked certificate 2812-CPR-AD5193
- Certifire approved product certificate CF5294
- CPR declaration of performance certificate: DOP-SHL-DC53.
- Available in Silver, Satin Stainless, Polished Stainless, Polished Brass, Satin Brass, Antique Brass, Polished Copper, Satin Copper, Black, RAL Colours, Wide range of Bronze Finishers.
Technical Information to download:
S300 Maintenance Instructions
BS EN1154 Classification Coding Diagram
S300 Line Drawing
S300 Fixing Instructions
S300 Fixing Template
S300 Synergy Catalogue Page
|
