| Product Description: |

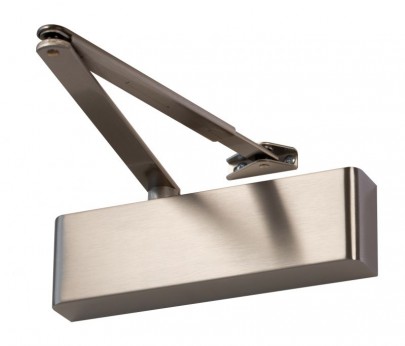

Synergy Door Closer S150 Size 2 - 4 with Semi Radius Cover Satin Stainless Steel Finish.
Product Reference: S150.SS.SR
Synergy door closer, power adjustable by template, suitable for doors 1100 mm wide and 80kg maximum weight. Certifire approved. Supplied complete with matching parallel arm bracket.
- Power Adjustable size 2-4 by template.
- Suitable for doors up to 1100 mm wide and 80 kg weight when fitted in fig 1 pull and fig 6 applications.
- Fully tested to the requirements of BS EN 1154.
- Independent door speed and door latching valves.
- Certificated for use on latched and unlatched fire doors.
- For use on single and double leaf doors.
- Easy installation
- High corrosion protection
- Fire tested to BS EN 1634 part 1. Assessed for use on 30, 60, and 120 minutes on timber fire doors.
- CE marked certificate 2812-CPR-AD5191
- Certifire approved product certificate CF5294
- CPR declaration of performance certificate: DOP-SHL-DC51.
- Available in Silver, Satin Stainless, Polished Stainless, Black, RAL Colours
Technical Information to download:
S150 Maintenance Instructions
BS EN1154 Classification Coding Diagram
S150 Line Drawing
S150 Fixing Instructions
S150 Fixing Template
S150 Synergy Catalogue Page
|
