| Product Description: |

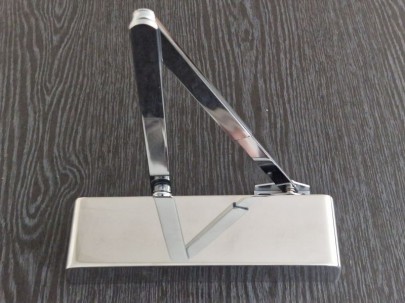

Synergy Door Closer S150 Size 2 - 4 with Semi Radius Cover Polished Stainless Steel Finish.
Product Reference: S150.PS.SR
Synergy door closer, power adjustable by template, suitable for doors 1100 mm wide and 80kg maximum weight. Certifire approved. Parallel arm bracket is not supplied with this door closer but can be purchased separately if required.
- Power Adjustable size 2-4 by template.
- Suitable for doors up to 1100 mm wide and 80 kg weight when fitted in fig 1 pull and fig 6 applications.
- Fully tested to the requirements of BS EN 1154.
- Independent door speed and door latching valves.
- Certificated for use on latched and unlatched fire doors.
- For use on single and double leaf doors.
- Easy installation
- High corrosion protection
- Fire tested to BS EN 1634 part 1. Assessed for use on 30, 60, and 120 minutes on timber fire doors.
- CE marked certificate 2812-CPR-AD5191
- Certifire approved product certificate CF5294
- CPR declaration of performance certificate: DOP-SHL-DC51.
- Available in Silver, Satin Stainless, Polished Stainless, Black, RAL Colours
Technical Information to download:
S150 Maintenance Instructions
BS EN1154 Classification Coding Diagram
S150 Line Drawing
S150 Fixing Instructions
S150 Fixing Template
S150 Synergy Catalogue Page
|
