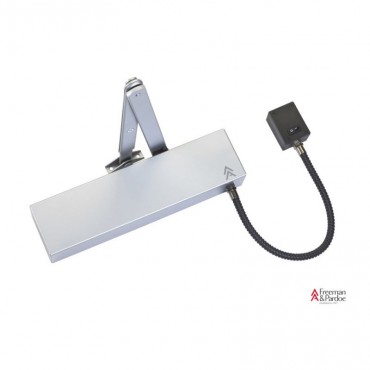

Arrow Electromagnetic Hold Open Door Closer Silver with Matching Arm 614UEM

Arrow 614UEM Electromagnetic Hold Open Door Closer in Silver with Matching Arm.

Product Reference: 614UEMSIL

The Arrow Electromagnetic Door Holder series is the ultimate solution for fire door safety and Ease of Access.

Linked to the buildings Fire Detection system, the Hold Open closer can be used to safely and legally hold open doors throughout a building to aid flow of traffic, but shut automatically upon first detection of a fire - providing Barrier Free Access for all inhabitants.

This electromagnetic door closer is ideal for use in care homes, hospitals, clinics, municipal buildings, schools, colleges, libraries, theatres, pubs, clubs and hotels.

Model:
614UEM - Hold Open Only

Finish:
Silver with Matching Arm

Specification:

• Electromagnetic Standard Arm Closer (links to Fire Detection System)
• Hold Open Configuration Only
• Adjustable Latching & Speed as standard
• Universal Fitting - Can be installed in Pull Side (Figure 1) size 4; Push Side (Figure 6) size 3; or Transom Mount (Figure 61) size 4

Material: Manufactured from British Extruded Aluminium and British Steel

Fire Tested: 120 Minutes

Downloads: Product Data Sheet - Declaration of Performance

The 613/4/5/6U Universal Hold Open collection of closers are available in the following power sizes and door weights/widths:

Options:

Cover Options: Available in Square or Flowline

Finish Options: Available in Stainless Steel, Chrome or Brass as standard or available in one of our exclusive designs or coloured finishes

Meeting the requirements for Ease of Access

The Guild of Architectural Ironmongers (GAI) and BS 8300 recommends the inclusion of Electromagnetic solutions to ensure standards for Ease of Access, Building Regulations, the Equality Act and Advanced Document M (ADM) are met.

Compared with traditional Mechanical Door Closers, Electromagnetic Door Closers have extremely low opening forces, and therefore are not materially affected by external factors such as hinges, seals, latches, air pressure and variable fitting standards & positions.

As can be seen from the table below our Electromagnetic Door Closers operate at a wide range of CE Powers and Door Widths, all meeting the requirements for ADM:
