| Product Description: |

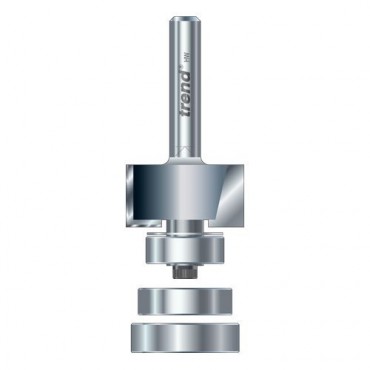

Popular rebate sets which include different size bearings for a choice of rebates.
Ease of setting-up and accurate depth of cut.
Ideal for rebating straight and shaped work pieces.
Ref. 46/39L has a 60mm shank length to give access to deep rebates.
Ref. 46/44 is ideal with delicate applications such as musical instrument production, when a small rebate is required for insertion of purfling.
When using bearing Ref. B95A, make two passes when a full depth of cut is required by using a larger bearing first.
Dimensions:
D=24 mm
C=12.7 mm
B=16 mm
B2=19 mm
B3=22 mm
Shank Diameter=8 mm
Rebate E:
B22=1.0 mm
B19=2.5 mm
B16=4 mm
Shank Diameter: 8 mm
Diameter Metric: 24
Cut Length Metric: 12.7
Bearing Diameter Metric: 22 |
