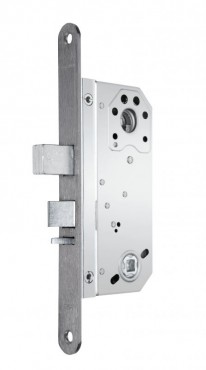

ASSA Modular Mortice Escape Sashlock Case 1520 50mm Left Hand Follower Satin

ASSA Modular Mortice Escape Sashlock Case 1520 50mm Left Hand Follower Satin.

Product Reference: 80474862313

Assa modular Scandinavian mortice escape sash lock with auto-deadlocking latch.

Our highest selling Modular lockcase range has been in the market for over 30 years, and with good reason. Whole life costing is guaranteed as the range has been successfully cycle tested to 2.3 million cycles which exceed the EN 12209 standard requirement of 200,000 cycles.

These locks are non-reversible, the correct handing must be specified. Please click the link to the handing diagram to ensure the correct lock is selected. View the 1520 Split Follower Lock Handing Diagram Here.

View Assa Cylinder Accessory Sets Here.

• Cylinder master keying for access control with simple replacement of cylinders if the keys are lost or stolen
• Heavy sprung follower allows for the use of unsprung furniture and heavy use over time
• Choice of key, turn or handle arrangement with the key being easy to remove in locked or unlocked position
• Available with radius faceplate for installation using CNC machinery or square faceplate for on-site fitting
• Guided 21mm deadbolt – 3 piece hardened steel laminated for additional strength and improved performance (90˚ turn of key or 360˚ turn for high security)

View Assa 1520 Modular Escape Sashlock Data Sheet Here.

Specification:

• Locks for exit doors offering a very high degree of security from the outside, but allowing unrestricted exit
• Suitable for doors to flats and apartments, hotel bedrooms and commercial premises
• Split follower lock incorporates different and separate functions on either side of the door
• Supplied with special box striking plate to accommodate the 25mm deadbolt throw
• Latchbolt deadlocks automatically when door is closed
• Faceplate: Radius
• Lever furniture fixing points: 30mm NE/SW bolt through fixing points
• Furniture: For use with sprung and unsprung door furniture
• Cylinder compatibility: Scandinavian oval - single, double or cylinder with thumb turn, Scandinavian round
• Backset: 50 or 70mm
• Follower: 8mm
• Dimensions (D x H x W): 74 or 94 x 150 x 18.5mm
• Centre distance: 111mm
• Deadbolt throw: 25mm (with a 90˚ turn)
• Faceplate size: 22mm
• Latch and deadbolt finish: Latchbolt – Bright zinc
• Deadbolt – Hardened steel, bright zinc
• Case material finish: Zinc-plated steel
• Faceplate and strike plate finish : SC
• Splinter guard: No
• Supplied with: Lockcase with faceplate (* and 560/40 strike plate)

Accessories:

• Intumescent kit for timber
• Additional strike plates
• Lever range (Scanflex/Classic/Distinction/RukoLine)
• Split follower

Suitable for fire doors: Timber (FD30/60), steel (FD120)

Certifire approved: No
