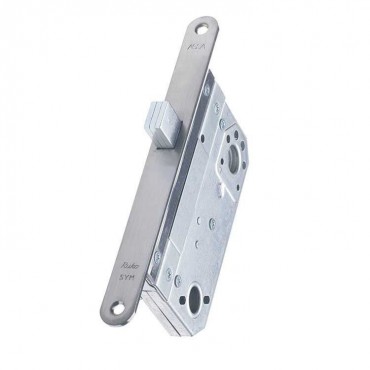

ASSA Modular Mortice Deadlock 2788 70mm Satin

ASSA Modular Mortice Deadlock 2788 70mm Satin.

Product Reference: 80312862713

Modular Scandinavian mortice deadlock

• Cylinder master keying for access control with simple replacement of cylinders if the keys are lost or stolen
• Heavy sprung follower allows for the use of unsprung furniture and heavy use over time
• Choice of key, turn or handle arrangement with the key being easy to remove in locked or unlocked position
• Available with radius faceplate for installation using CNC machinery or square faceplate for on-site fitting
• Guided 21mm deadbolt – 3 piece hardened steel laminated for additional strength and improved performance (90˚ turn of key or 360˚ turn for high security)

View Assa Modular 2788 Deadlock Data Sheet Here

View Assa Cylinder Accessory Sets Here.

Specification:

• Locks for entrance doors, corridor and other swing doors with door pulls and push plates
• Supplied as standard with striking plate
• Cylinder and accessories bolt through lockcase for added strength
• Hardened steel deadbolt thrown 21mm by 90° turn of key or thumb turn
• Faceplate: Radius
• Furniture: Push plate/pull handle
• Cylinder compatibility: Scandinavian oval - single, double or cylinder with thumb turn, Scandinavian round
• Backset: 50 or 70mm
• Dimensions (D x H x W): 74 or 94 x 155 x 18.5mm
• Centre distance: 111mm
• Deadbolt throw: 21mm with a 90˚ turn
• Faceplate size: 22mm
• Deadbolt finish: Deadbolt – Hardened steel, bright zinc
• Case material finish: Zinc-plated steel
• Faceplate and strike plate finish: SC
• Splinter guard: No
• Supplied with: Lockcase with faceplate and 2888 strike plate

Accessories:

• Intumescent kit for timber
• Additional strike plates

Suitable for fire doors: Timber (FD30/60), steel (FD120)

Certifire approved: No
