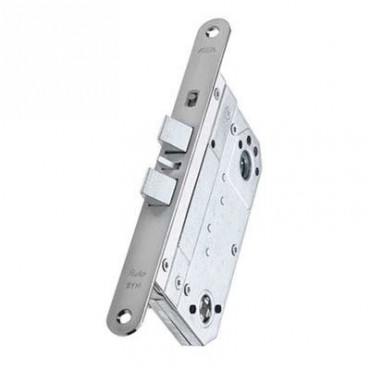

ASSA Modular Double Nightlatch Case with Snib Lock-back 760 50mm Satin

ASSA Modular Double Nightlatch Case with Snib Lock-back 760 50mm Satin.

Product Reference: 46916062313

760 mortice double nightlatch with snib lock-back.

Modular Scandinavian mortice double night latch with snib lock-back.

Our highest selling Modular lockcase range has been in the market for over 30 years, and with good reason. Whole life costing is guaranteed as the range has been successfully cycle tested to 2.3 million cycles which exceeds the EN 12209 standard requirement of 200,000 cycles.

• Cylinder master keying for access control with simple replacement of cylinders if the keys are lost or stolen
• Heavy sprung follower allows for the use of unsprung furniture and heavy use over time
• Choice of key, turn or handle arrangement with the key being easy to remove in locked or unlocked position
• Available with radius faceplate for installation using CNC machinery or square faceplate for on-site fitting
• Guided 21mm deadbolt – 3 piece hardened steel laminated for additional strength and improved performance (90˚ turn of key or 360˚ turn for high security)

View Assa 760 Double Nightlatch Data Sheet Here.

View Assa Cylinder Accessory Sets Here.

Specification:

• Locks suitable for classroom doors, offices, industrial premises and apartments
• Key can only be removed in locked (or locked-back) position
• Latchbolts reversible without opening lockcase
• Upper bolt deadlocks automatically when door is closed
• Snib for locking the upper bolt into lockcase
• Faceplate: Radius
• Lever furniture fixing points: 30mm NE/SW bolt through fixing points
• Furniture: For use with sprung and unsprung door furniture
• Cylinder compatibility: Scandinavian oval - single, double or cylinder with thumb turn, Scandinavian round
• Backset: 50 or 70mm
• Follower : 8mm
• Dimensions (D x H x W): 74 and 94 x 150 x 18.5mm
• Centre distance: 111mm
• Faceplate size: 22mm
• Latch and deadbolt finish: Latchbolt – Bright zinc
• Case material finish: Zinc-plated steel
• Faceplate and strike plate finish: SC
• Splinter guard: No
• Supplied with: Lockcase with faceplate and 2862-2 strike plate

Accessories:

• Intumescent kit for timber
• Additional strike plates
• Lever range (Scanflex/Classic/Distinction/RukoLine)

Suitable for fire doors: Timber (FD30/60), steel (FD120)

Certifire approved: No
