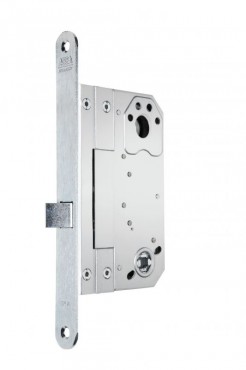

ASSA Modular Latchcase 1498 50mm Satin

ASSA Modular Latchcase 1498 50mm Satin.

Modular Scandinavian Mortice Latch

Our highest selling Modular lockcase range has been in the market for over 30 years, and with good reason. Whole life costing is guaranteed as the range has been successfully cycle tested to 2.3 million cycles which exceed the EN 12209 standard requirement of 200,000 cycles.

• Cylinder master keying for access control with simple replacement of cylinders if the keys are lost or stolen
• Heavy sprung follower allows for the use of unsprung furniture and heavy use over time
• Choice of key, turn or handle arrangement with the key being easy to remove in locked or unlocked position
• Available with radius faceplate for installation using CNC machinery or square faceplate for on-site fitting
• Guided 21mm deadbolt – 3 piece hardened steel laminated for additional strength and improved performance (90˚ turn of key or 360˚ turn for high security)

View Assa 1498 Latch Case Data Sheet Here

View Assa Cylinder Accessory Sets Here.

Specification:

• Latch for inner doors where locking is not required
• Comes complete with striking plate
• Latchbolt reversible without opening lockcase
• No locking device
• Lever handle retracts latchbolt
• Faceplate: Radius
• Lever furniture fixing points: 30mm NE/SW bolt through fixing points
• Furniture: For use with sprung and unsprung door furniture
• Backset: 50 or 70mm
• Follower: 8mm
• Dimensions (D x H x W): 74 or 94 x 150 x 18.5mm
• Centre distance: 111mm
• Faceplate size: 22mm
• Latch and deadbolt finish: Latch – Bright zinc
• Case material finish: Zinc-plated steel
• Faceplate and strike plate finish: SC
• Splinter guard: No
• Supplied with: Lockcase with faceplate and 2885 strike plate
• Suitable for fire doors: Timber (FD30/60), steel (FD120)
• Certifire approved: No

Accessories:

• Intumescent kit for timber
• Additional strike plates
• Lever range (Scanflex/Classic/Distinction/RukoLine)
