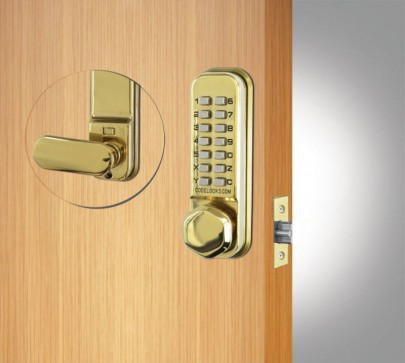

Codelock 255 Digital Lock with Holdback Brass

Codelock 255 Digital Lock with Holdback in Brass Finish.

Product Reference: CL255PB

The CL255 is a light duty mortice latch with dual backplate. The latch is spring loaded and will lock automatically when the door is closed. The latch bolt has a deadlocking plunger feature to prevent unlawful shimming of the latch. The lock has a slide button which can be used to hold open the latchbolt for free entry without operating the code (when the lock is not required to be operational). Function can be disabled on installation requiring code to be entered every time to open door.

• Mechanical Codelock
• Light duty mortice latch with dual backplate
• Hexagonal bevelled handle and lock case
• Available in stainless steel and polished brass
• Key override option available (stainless steel finish only)
• Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home

Operating the Codelock:
The CL255 mechanical locks are supplied with a random code commencing with the ‘C’ clear button. To change the code after fitting, the lock must first be removed from the door. The code is non sequential, that is the code can be entered in any order e.g. 1234 can be 4321 or 1342 or whatever is the most convenient sequence. With the 13 buttons a total of 8,191 different codes are available, any of which may be entered in any order.

PLEASE NOTE: For fire door assemblies the hold-open function should be disabled, unless used in conjunction with a self-closing device appropriately tested on unlatched fire doors.

Finish: PVD Polished Brass

Technical:
Codes:  8,191 non sequential codes available
Code free option:  N/A
Code change method:  Requires removal of lock from door
Code in / code out:  No
Code storage:  Single code
Door thickness:  35mm - 60mm (1 3/8" - 2 3/8")
Non handed:  Lock will fit doors hung on the left or right
Spindle type:  Flat spring loaded spindle
Suitable for:  Internal and external use
Type:  Mortice latch
