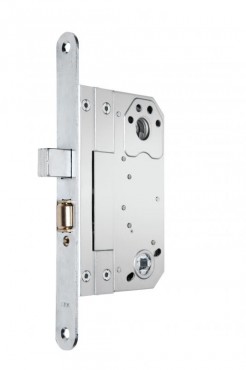

ASSA Modular Rollerbolt Sashlock Case 766 50mm Satin (Strike not Included)

ASSA Modular Rollerbolt Sashlock Case 766 50mm Satin (Strike not Included).

Product Reference: 46912162713

766 mortice rollerbolt lock (bathroom lock with accessory set)

Modular Scandinavian mortice rollerbolt lock.

Our highest selling Modular lockcase range has been in the market for over 30 years, and with good reason. Whole life costing is guaranteed as the range has been successfully cycle tested to 2.3 million cycles which exceeds the EN 12209 standard requirement of 200,000 cycles.

• Cylinder master keying for access control with simple replacement of cylinders if the keys are lost or stolen
• Heavy sprung follower allows for the use of unsprung furniture and heavy use over time
• Choice of key, turn or handle arrangement with the key being easy to remove in locked or unlocked position
• Available with radius faceplate for installation using CNC machinery or square faceplate for on-site fitting
• Guided 21mm deadbolt – 3 piece hardened steel laminated for additional strength and improved performance (90˚ turn of key or 360˚ turn for high security)
• Lock supplied without strike

View Assa 766 Rollerbolt Sashlock Data Sheet Here.

View Assa Cylinder Accessory Sets Here.

Specification:

• Roller latch suitable for single swing and double swing doors
• Ideal for push/pull doors on applications such as shops, entrances, inner doors and toilet cubicles
• The roller latch may be retracted by lever handle, or simply by pushing/pulling the door
• Note that the key / thumb turn does not retract the roller latch
• Roller latch is adjustable from 0mm to 8mm using the screw on the faceplate under the roller latch
• Faceplate: Radius
• Lever furniture fixing points@:30mm NE/SW bolt through fixing points
• Furniture: Push plate / Pull handle
• Cylinder compatibility: Scandinavian oval - single, double or cylinder with thumb turn, Scandinavian round
• Backset: 50 or 70mm
• Follower: 8mm
• Dimensions (D x H x W): 74 or 94 x 150 x 18.5mm
• Centre distance: 111mm
• Deadbolt throw: 21mm
• Faceplate size: 22mm
• Latch and deadbolt finish: Rollerbolt – Brass, Deadbolt – Hardened steel
• Case material finish: Zinc plated steel
• Faceplate and strike plate finish: SC
• Splinter guard: No
• Supplied with: Lockcase with faceplate

Accessories:

• Intumescent kit for timber
• Additional strike plates
• 265 accessory set

CE marked: No

Suitable for fire doors: No

Certifire approved: No
