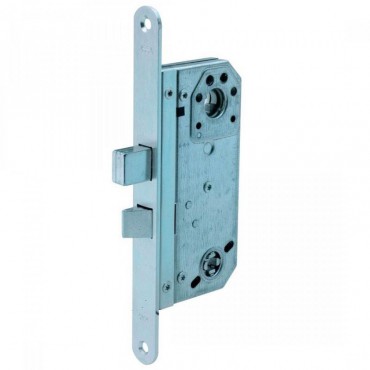

ASSA Modular Sashlock Case 765 50mm Satin

ASSA Modular Sashlock Case 765 50mm Satin.

765 mortice sashlock (bathroom lock with accessory set)

Modular Sashlock suitable for applications with regular and heavy foot flow.
Our highest selling Modular lockcase range has been in the market for over 30 years, and with good reason. Whole life costing is guaranteed as the range has been successfully cycle tested to 2.3 million cycles which exceed the EN 12209 standard requirement of 200,000 cycles.

• Cylinder master keying for access control with simple replacement of cylinders if the keys are lost or stolen
• Heavy sprung follower allows for the use of unsprung furniture and heavy use over time
• Choice of key, turn or handle arrangement with the key being easy to remove in locked or unlocked position
• Available with radius faceplate for installation using CNC machinery or square faceplate for on-site fitting
• Guided 21mm deadbolt – 3 piece hardened steel laminated for additional strength and improved performance (90˚ turn of key or 360˚ turn for high security)

View Assa Modular 765 Sashlock Data Sheet Here

View Assa Cylinder Accessory Sets Here.

Specification:

• Ideal for high frequency of use by public or others with little incentive to exercise care and with a high chance of misuse
• Hardened steel deadbolt thrown 21mm by 90° turn of key or thumb turn
• Cylinder and accessories can be bolted through the lockcase for added strength
• Key can be removed in locked or unlocked position
• Available with radius faceplate for installation using CNC machinery or square faceplate for on-site fitting
• Faceplate: Radius
• Lever furniture fixing points: Accepts 30mm bolt-through centers on diagonal (SW/NE)
• Furniture: For use with sprung and unsprung door furniture
• Cylinder compatibility: Scandinavian oval - single, double or cylinder with thumb turn, Scandinavian round
• Follower: 8mm
• Dimensions (D x H x W): 74 or 94 x 150 x 18.5mm
• Centre distance: 111mm
• Deadbolt throw: 21mm (with a 90˚ turn)
• Faceplate size: 22mm
• Latch and deadbolt finish: Latch – Bright zinc
• Deadbolt – Hardened steel, bright zinc
• Case material finish: Zinc-plated steel
• Faceplate and strike plate finish: SC
• Splinter guard: No
• Supplied with: Lockcase with faceplate

Accessories:

• Intumescent kit
• Lever range (Scanflex/Classic/Distinction/RukoLine)
• Additional strike plates
• 263 accessory set

Suitable for fire doors: Timber (FD30/60), steel (FD120)
