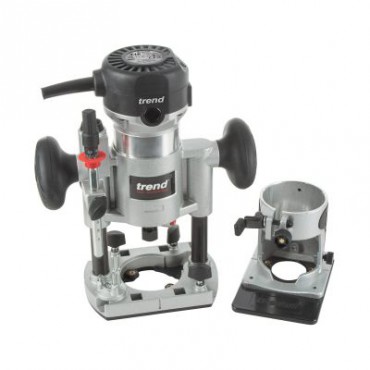

Trend T1EPS 710W 1/4 Plunge Router 240V

Trend T1EPS 710W 1/4 Plunge Router 240V.

710W Motor with Soft-Start to prevent kick-back and protect the workpiece.

• Extended Trim Base with Rack & Pinion Height Adjustment and up to 37mm cut depth.
• Plunge Base with 60mm Plunge Depth for light-duty jig, deep or long-reach cutting applications such as hinge fitting, trenching or intumescent strip installation.
• Precision Centring System to ensure concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.
• 6-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
• Constant Speed Control monitors the spindle RPM and adjusts automatically to maintain cutter speed for smooth and consistent cuts.
• Double Locking Collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank.
• Fine Height Adjuster** with an easy-to-read 0.2mm increment display for precision depth adjustments.
• Height-Adjustable 3-Position Rotating Turret** for fast, repeatable batch and stepped cutting.
• Compact Inclined Handles** feature a soft grip moulding for comfortable operation
• Offset Dust Extraction Spout** for an unimpeded view of the workpiece.
• Compatible with Trend Guide Bushes for jig use, templating and inlaying.
• Adjustable Side Fences for templating and edge rebating.
• *3 year warranty Ð Online registration required
• **Plunge base only

Dimensions:
Duty Rating=Light
Motor Power=710W
AC Voltage=240V
Plug Type=UK 3 Pin
Supplied Collet Size=1/4"
Plunge Stroke (Max)=60mm
Cutter Height Adjustment - Trim Base=37mm
No Load Speed=10,000-30,000rpm
Supplied Guide Bush=16mm (GB160)
Fence Rod Length=300m
Fence Rod Centres=84mm
Fence Rod Diameter=8mm
Base Aperture Diameter=40mm
Cutter Diameter (Max)=35mm
Dust Spout Internal Diameter=35mm
Weight of Base - Trim=0.32kg
Weight of Base - Plunge=1.35kg
Weight of Motor Body=1.49kg
Sound Pressure (Lpa)=85 dB(A)
Acoustic Pressure (Lwa)=96 dB(A)
Hand / Arm Vibration -Trim=4.6m/s2
Hand / Arm Vibration - Plunge=4.5m/s2
Power Cable Length=3m
Router Table Compatible=No
