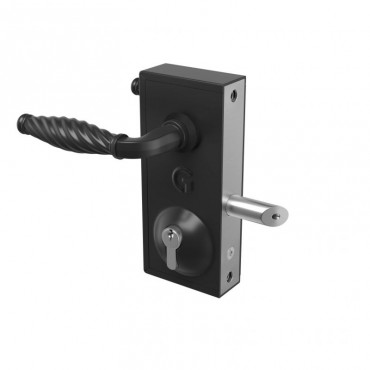

Gatemaster Superlock Bolt on Lock for Metal Gates 40mm - 60mm Traditional Handle BLD4060T

Gatemaster Superlock Bolt on Lock with Traditional Handle for Metal Gates with a 40mm - 60mm Gate Frame.

Product Reference: BLD4060T

The slim Superlock latch deadlock is perfect for fitting to box section metal gate frames. Simply bolt the lock onto the gate frame and adjust the latchbolt to suit your gate.

• Easy to fit – Slim 70mm case designed to fit a wide range of gate applications
• Secure – Stainless steel latchbolt which latches 15mm into the gate post and then moves another 15mm when deadlocked (30mm total deadlocked length)
• Adaptable – Latchbolt can be adjusted for different box section size and rotated to suit left or right hand gates
• Reliable – Supplied with a guide plate with brass bearing to ensure the lock lasts!
• Available in two sizes – BLD1030 for 10 to 30mm flat bar or box section gate frames and BLD4060 for 40 to 60mm gate frames
• Supplied with handles – Two styles available a profiled style (P) or a more traditional looking handle (T)
• Double-sided – the BLD has keyed access on both sides
• Use in conjunction with the Superlock keep to increase security and product life
• Gate post strike plate supplied for smooth latching action
• Suitable for 40mm - 60mm gate frame.

BLD1030P – For 10-30mm gate frames with profiled lever handles
BLD1030T – For 10-30mm gate frames with traditional handles
BLD4060P – For 40-60mm gate frames with profiled lever handles
BLD4060T – For 40-60mm gate frames with traditional handles

BD1030 – For 10-30mm gate frames
BD4060 – For 40-60mm gate frames
To find the correct size of your lock, you have to measure the thickness of the gate frame. View the diagram in the image above to see where to measure.

Gatemaster Superlock BLD Specification Sheet
