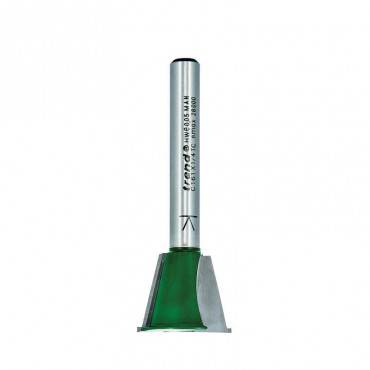

| Product Description: |
To suit user preference, the table shows angles from the horizontal and the profiles show angles from the vertical.
Dimensions:
D=19.7 mm
D2=17.5 mm
C=5/8 inch
C=16 mm
OL=56 mm
A=104 degrees
Shank Diameter=1/4 inch
With spurs
For Titan 14 mm comb
Shank Diameter: 1/4
Diameter Metric: 19.7
Diameter 2 Metric: 17.5
Cut Length Imperial: 5/8
Cut Length Metric: 16
Overall Length Metric: 56
Angle: 104
|
