| Product Description: |

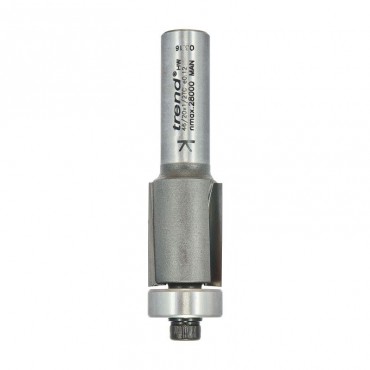

Trend Professional Bearing Guided 90o Trimmer & Profiler from Cookson Hardware.
Product Reference: 46/20X1/2TC
Self guided trimmers with bearings mounted on nose of cutters, for trimming plastic or plywood overlay.
For copy profiling, use the bearing to follow a template or base edge of board. A maximum 3mm overlap should be left before copy profiling.
References T46/1, 46/2 and 46/20 are down cut with 5o shear to prevent breakout on veneer.
Safety:
When using plastic laminate always allow laminate adhesive to dry before trimming. This avoids clogging the guide bearing.
Tool diameters are 0.2mm smaller than bearing diameter.
Size:
Diameter - 19.1mm
Cut Length - 25.0mm
Bearing - 19.1mm
Angle - 90o
Shank Diameter - 1/2" |
