| Product Description: |

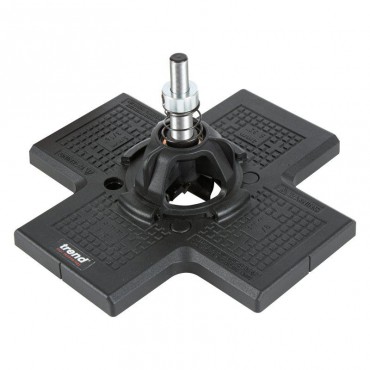

Trend 35mm Concealed Hinge Jig.
Product Reference: CAB/JIG/B
A precision drilling jig for installing concealed cabinet (Ôeuro-styleÕ) hinges accurately and quickly. Features tool-free inset positioning for rapid setup and pilot hole guides to ensure perfect hinge alignment. For use with a standard Combi Drill. Includes 35mm TCT machine bit.
- 3, 4, 5, & 6mm Hinge Inset Positions quickly sets the correct distance from the edge of the door.
- In-built Depth Stop to prevent over-drilling.
- Pilot Hole Plate ensures hinges are mounted perfectly square.
- Pin Guide System minimises setup time & guarantees positional accuracy.
- Glass Fibre Reinforced Nylon Body minimises weight whilst retaining strength.
- Spring-Loaded Drill Guide prevents machine bit from damaging door surfaces.
- Large Clamping Area to secure the jig during use.
- Includes 35mm TCT Machine Bit with cutting spurs for a cleaner finished edge, especially in man-made materials such as MFC and MDF.
Dimensions:
Insets=3, 4, 5, 6 mm
Diameter=35 mm
|
