| Product Description: |

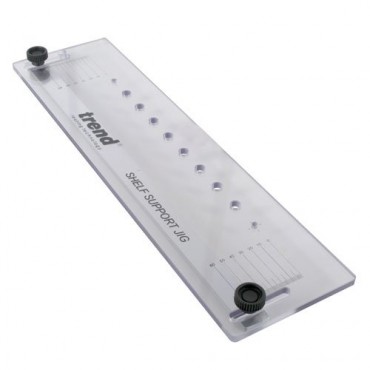

A template to allow routing or drilling of 32mm centre holes for 5mm diameter shelf supports.
The template is a clear plastic with an adjustable clamping bar with two locking knobs.
Supplied with twelve 5mm metal shelf supports, one alloy knurled index pin and a 9.5mm diameter guide bush.
Allows holes to be positioned from 10mm to 64mm from edge of board.
This template can be used to add existing holes to a unit, or for user made shelves, the index lines to allow for easy setting up.
Template can also be used with a power drill and an accessory quick release 5mm shelf support drill bit guide Ref. SNAP/SS/5MM or TEMP/SSD/5MM . This bit has a lip and spur drill fitted for drilling blind holes.
Requires two clamps and 5mm TCT router dowel drill Ref. 61/05 or C174.
Dimensions:
Size 500 mm x 130 mm x 8 mm |
