| Product Description: |

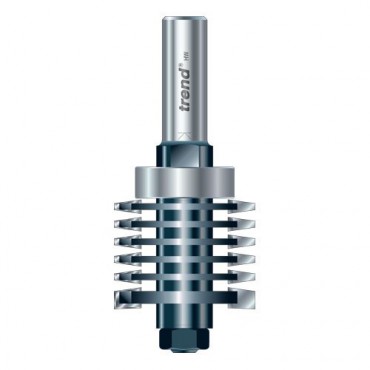

Finger Jointer combines an assembley of five TCT slotting cutters with an abutting-edge cutter to produce a profile that extends the glue line threefold, resulting in an extremely strong joint.
The Finger Jointer fits into any portable or stationary router with a 1/2 inch collet.
Performing the cut
Timber must be machined square.
The cutters should be assembled to match the spindle rotation, and be stacked at 90 degrees to one another to ease stress on the tool.
Dimensions:
D=40 mm
B=28 mm
E=6.0 mm
OL=96 mm
Shank Diameter=1/2 inch
Timber thickness min.=11 mm
Timber thickness max.=36 mm
Shank Diameter: 1/2
Diameter Metric: 40
Overall Length Metric: 96
Bearing Diameter Metric: 28 |
