| Product Description: |

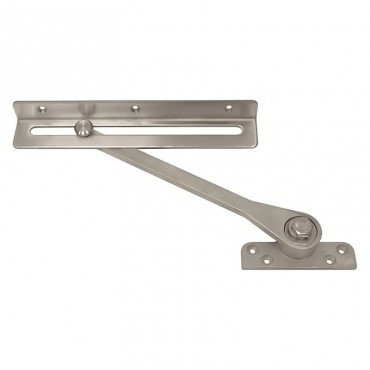

Friction Door Limiting Stay in Silver Finish.
Product Reference: Z105-Z
Since it is a surface fixed product, this door stay is suitable for use on both timber and steel doors. The Z105-Z is a heavy pattern surface fixing friction door stay manufactured from steel and zinc plated before being powder coated grey, which makes them suitable for external use. To adjust the friction, tighten or loosen hexagonal bolt on the friction box using a spanner. 65mm spacing from the hinge axis will give an opening angle of approximately 90°. Decrease this dimension for greater angles (e.g. 95-100°) or increase the dimension for restricting the door to approximately 80-85°.
Successfully tested to Grade 4 (240 hours neutral salt spray exposure) in accordance with BS EN 1670:2007 Building Hardware - Corrosion Resistance.
- Friction can be easily adjusted by rotating hexagonal bolt with spanner
- Non Handed
- Suitable for timber and steel doors
- Fixings not included
|
