| Product Description: |

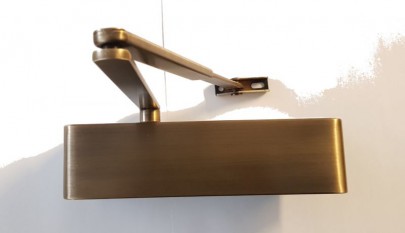

Boss Overhead Door Closer Size 2 - 5 in Antique Brass Finish.
Product Reference: TS5.225-AB
A highly efficient, durable and stylish variable power overhead door closer. Suitable for most applications particularly those with public use which may require Equality Act compliance. Supplied with an architectural quality slimline cover with a matching finish arm as standard. The TS5.225 has backcheck and delayed action functions as well as adjustments for variable power, latching speed and closing speed. Spring strength adjustable from size 2 - 5 for doors up to 1250mm in width and 100kg in weight.
Features:
- Suitable for doors up to 1250mm maximum width or 100kg weight
- Power adjustable size 2 - 5 by spring
- Universal application (Figure1, 6 & 61) (Figure 61 not covered by CE or Certifire)
- Adjustable backcheck
- Adjustable delayed action
- Adjustable closing speed
- Adjustable latching speed
- Manufacturers 25 year guarantee
Full Specification Data Sheet here.
Standards:
- Included in a successful fire test to EN1634
- CE marked against EN1154
- Certifire approved - refer to CF689 for scope of approval
BS8300 / Equalities Act Approved Document "M"
The Boss TS5.225 overhead door closer (standard fixing position) has an opening force (0-30 degrees) less than 30N when fitted to a minimum width door of 900mm (Fig 1) and 826mm (Fig 6), and has an opening force (30-60 degree) less than 22.5N when fitted to a minimum width door of 826mm.
Therefore the suitable width of door for the TS5.225 overhead door closer when fitted in the above fixing positions shall be 900mm, Fig 1 & 826mm Fig 6.
NOTE:
BS 8300 requirements are for the whole door set and therefore the minimum suitable door width will increase when the door closer is fitted with all other items of ironmongery on site.
Body Dimensions:
Length 236mm
Width 55mm
Depth 38mm
Finish:
Antique Brass
|
