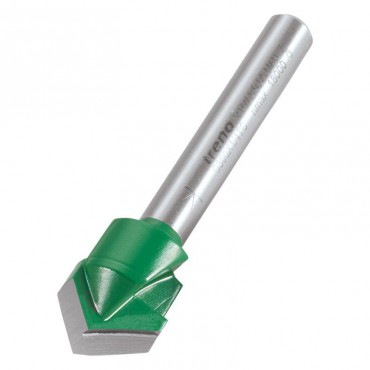

Trend Alucobond V Groove Router Cutter 45 Degree x 13mm C300X1/4TC

Trend Alucobond V Groove Router Cutter 45 Degree x 13mm.

Product Reference: C300X1/4TC

Specially designed tools for aluminium composite cladding material such as Alucobond, Dibond which comprises an aluminium cover with polyethylene core.
The v groove cutters rout into the cover and part of the core to allow folding of material by hand.
Has a 90 degree included angle with 3mm flat at base and is used to create 90 degree fold.
Use at 12000-15000 RPM, feed speed 400 - 600mm/min. depending on thickness and machine (CNC machine or hand). Cooling is not required.

• 1/4" shank 13mm diameter 10mm cut depth twin flute TCT cutter.
• Specialist cutter for routing insulated aluminium panels.
• Cleanly removes the waste from the insulated side to allow panels to be folded to a 90¡ profile.
• 1/4" shank for light duty applications and easy control in smaller routers.
• PTFE coated bodies reduces friction and heat build-up for longer lifespan.
• 2mm thick Premium Micro-granular Tungsten Carbide Tips for an excellent finish in all materials.
• KÕ marked shank ensures correct insertion depth for safe routing.
• Additional shank markings to indicate maximum safe speed and cutter reference.
• Extra-long shank for use in router tables.

Dimensions:
D=13 mm
C=10 mm
OL=57 mm
A=45 degrees
Shank Diameter=1/4 inch
