| Product Description: |

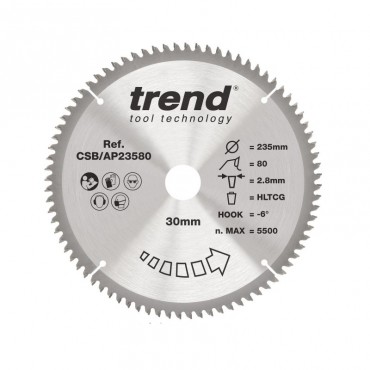

A range of tungsten carbide tipped saw blades for cutting Plastic, Aluminium, Copper and other non-ferrous metals and alloys. For use in circular, plunge, table and mitre saws, Trend Aluminium & Plastic blades deliver accurate, safe cutting performance. Ideal for window & door extrusions, facias & soffits, checker plate, sheet material.
Triple Chip Ground Profile (TCG) with -6¡ Hook eliminates self-feeding for a safe, clean, controlled, cutting action in aluminium, plastics and non-ferrous metals.
High Tooth Count reduces feed and cutting speed for a clean, controlled cut.
Microgranular Tungsten Carbide Tips (TCT) for optimum edge retention.
Precision Ground Alloy Steel Plate to maintain flatness.
Body Hardened and Tempered to minimise deflection under load.
Expansion Slots improve heat dissipation to minimise vibration, prevent kick-back and improve cut quality.
Etched Blade Information to EN847 safety standard.
Reamed Bore ensures precise spindle fit.
NOTE: Requires a wax lubricant when cutting Aluminium, such as Trend TRENDIWAX.
Dimensions:
D1=9 1/4 inches
D1=235 mm
Bore=30 mm
Kerf=2.8 mm
Plate thick=1.9 mm
No. of Teeth=80
Tooth Form=HLTCG
Hook Angle=NEG 6 degrees
Diameter Imperial: 9 1/4
Diameter Metric: 235 |
